The swellable waterstop is a new rubber product that based on the raw rubber materials, with a polymer material,throughing chemical modification. It has the characteristics of rubber and swellable to proof water.
It be divided into bentonite waterstop and production waterstop.
Detailed introduction
The swellable waterstop is a new rubber product that based on the raw rubber materials, with a polymer material,throughing chemical modification. It has the characteristics of rubber and swellable to proof water.
It be divided into bentonite waterstop and production waterstop.

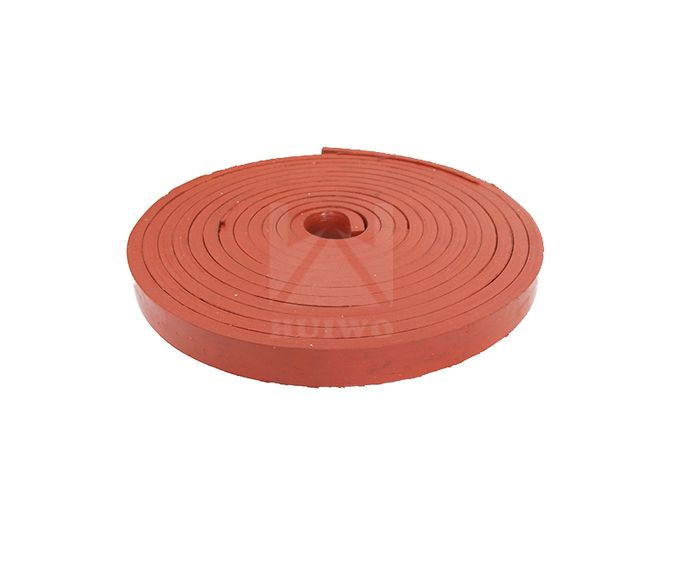

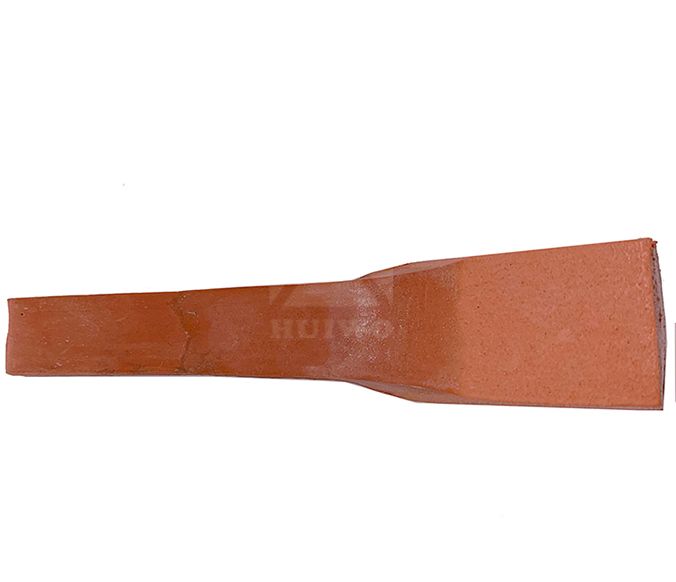

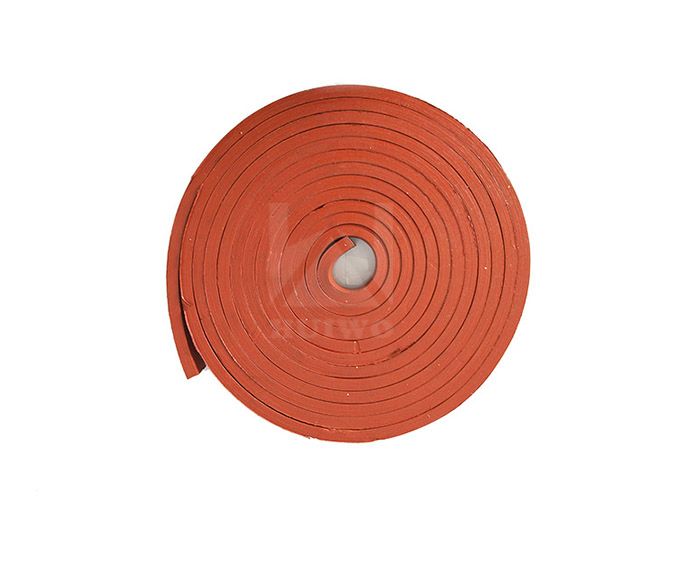

This is the production rubber waterstop.
The swellable waterstop have the excellent flexibility,expansion ability,plasticity when water intrude,it is widely used in tnnels, subway, sewage plant, the municipal pipe network,Culvert, dam, bridge construction, water conservance, hydropower projects, building underground,Structure construction joints, expansion joints and waterproofing of concrete work required.
The main technical performance indicators:
| Item | Index | |||
| PZ-150 | PZ-250 | PZ-400 | ||
| Hardness (Sauer A) | 42±10 | 45±10 | ||
| Tensile strength/MPa ≥ ≥ | 3.5 | 3 | ||
| Elongation at break/% ≥ | 450 | 350 | ||
| Volume expansion ratio ≥ | 150 | 250 | 400 | |
| Repeated immersion test | Tensile strength/MPa ≥ | 3 | 2 | |
| Elongation at break/%≥ | 350 | 250 | ||
| Expansion ratio/%≥ | 150 | 250 | 300 | |
| Low temperature bending (-20℃X2h) | No cracks | |||
Product specifications:
10×10mm、10×30mm、15×20mm、20×10mm、20×25mm、20×30mm、20×50mm、30×50mm、50×50mm etc.
Also we can produce the slow-expanding type, to strengthen the network type, such as various type of water swelling waterstop article.
